Silo Dust Collector Manufacturing Process
Real workshop photos showing selected fabrication stages for silo dust collector housings, pulse-jet cleaning parts and custom equipment.
From Steel Preparation to Equipment Assembly
Our manufacturing work includes steel plate preparation, laser cutting, component prefabrication, welding, housing assembly, surface treatment, filter component installation, electrical assembly and final inspection. The exact process depends on the selected CTD model, material and custom project requirements.
- Standard CTD models and custom dimensions
- Carbon steel and stainless steel options
- Custom flange, filter area and electrical configuration
- Assembly and inspection before export packing

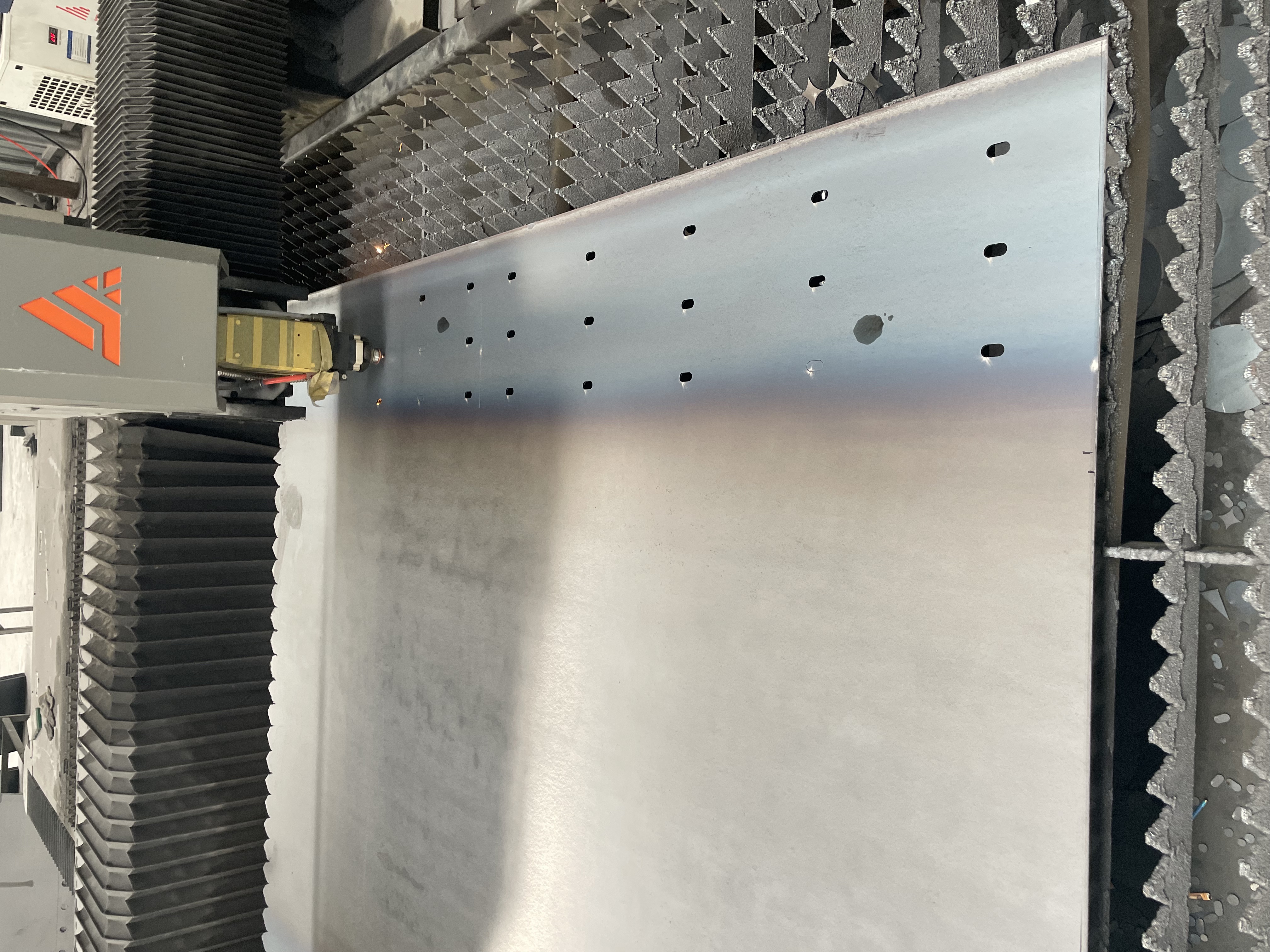

Steel Plate Laser Cutting
CNC laser cutting prepares housing plates and connection holes for subsequent forming and assembly.

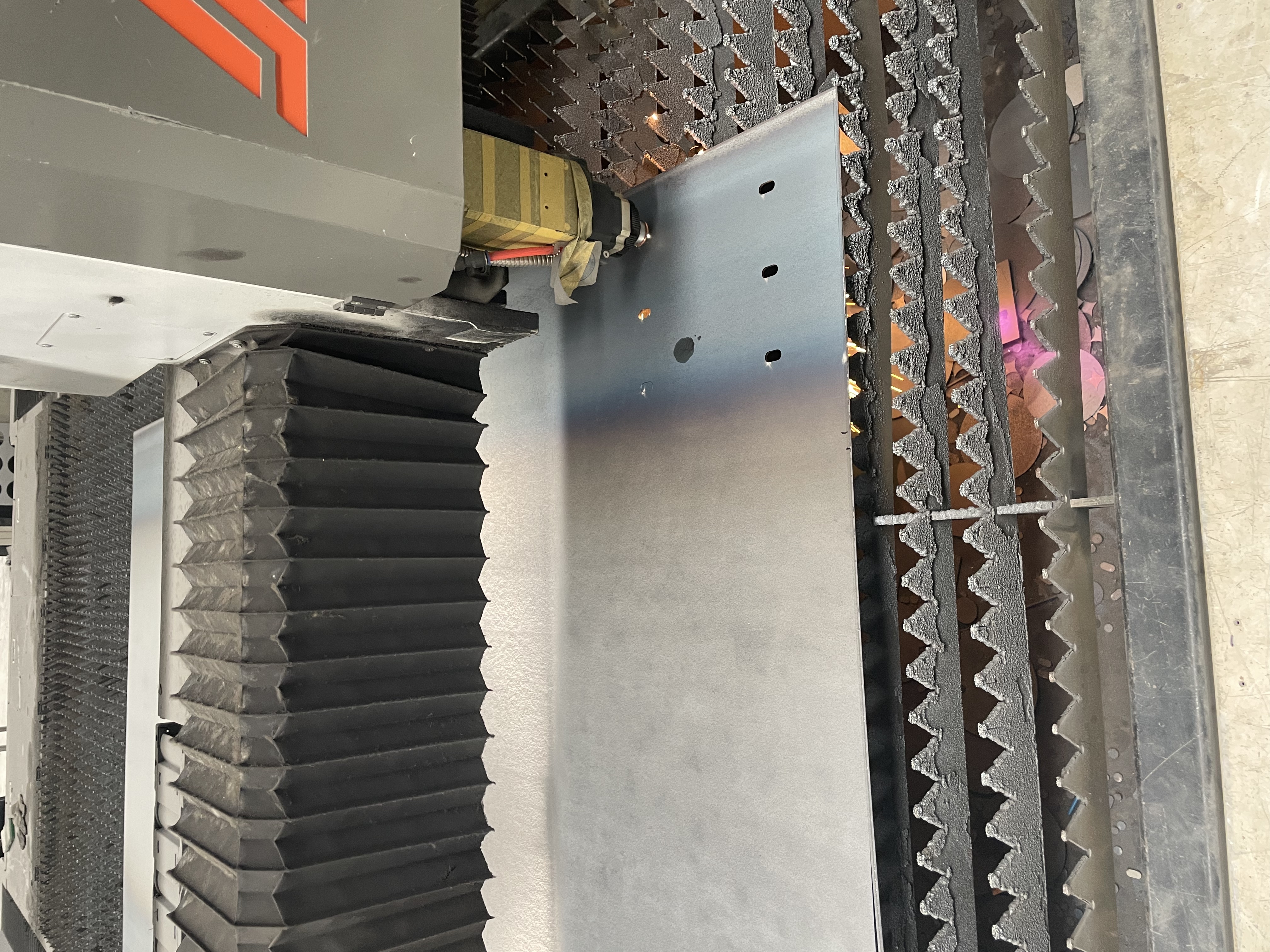

Laser Cutting Detail
Accurate cutting supports repeatable hole positions, component fit-up and custom equipment dimensions.

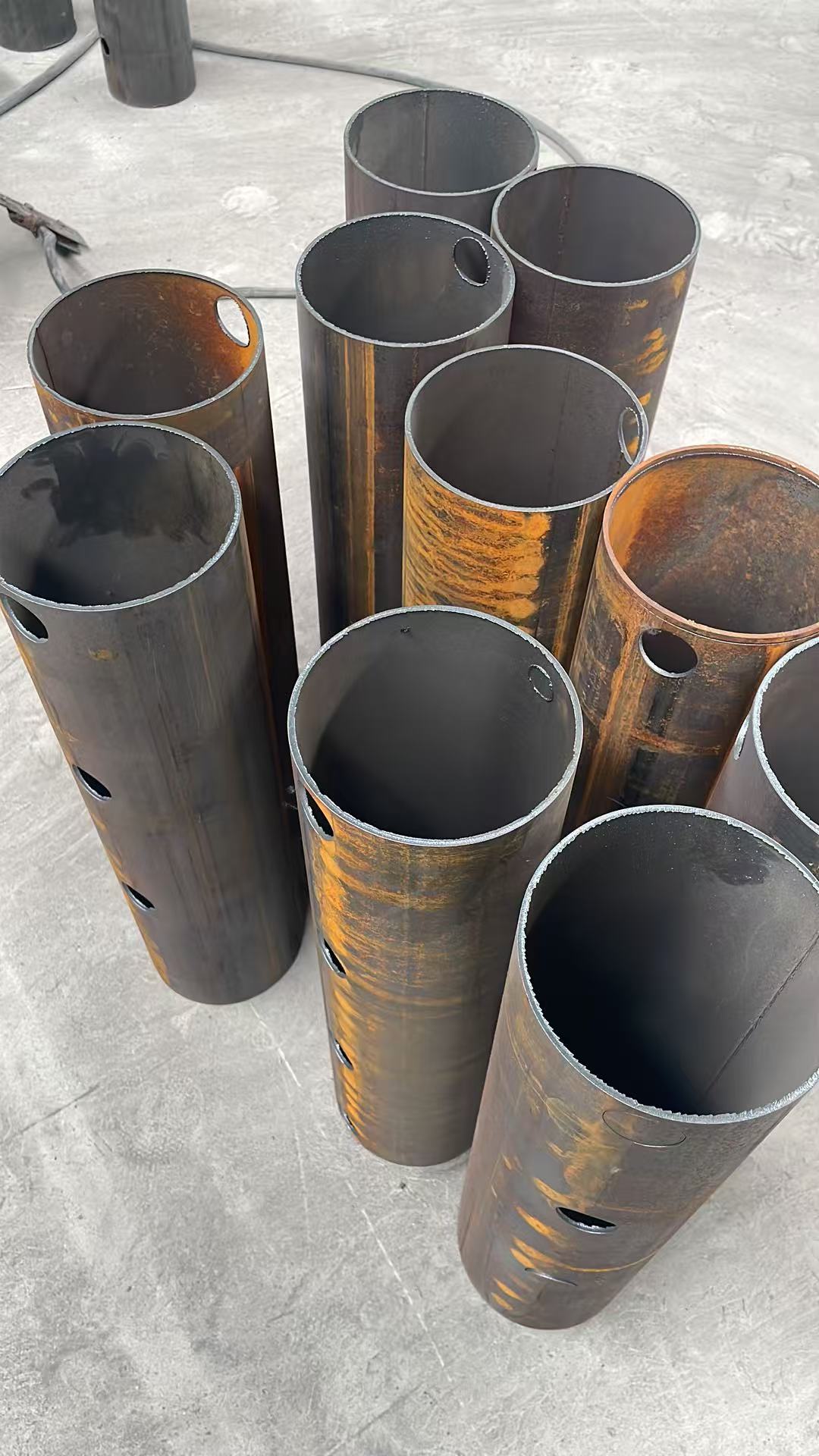

Air Header Prefabrication
Steel tube sections are prepared as air header components before welding, connection opening and finishing operations.

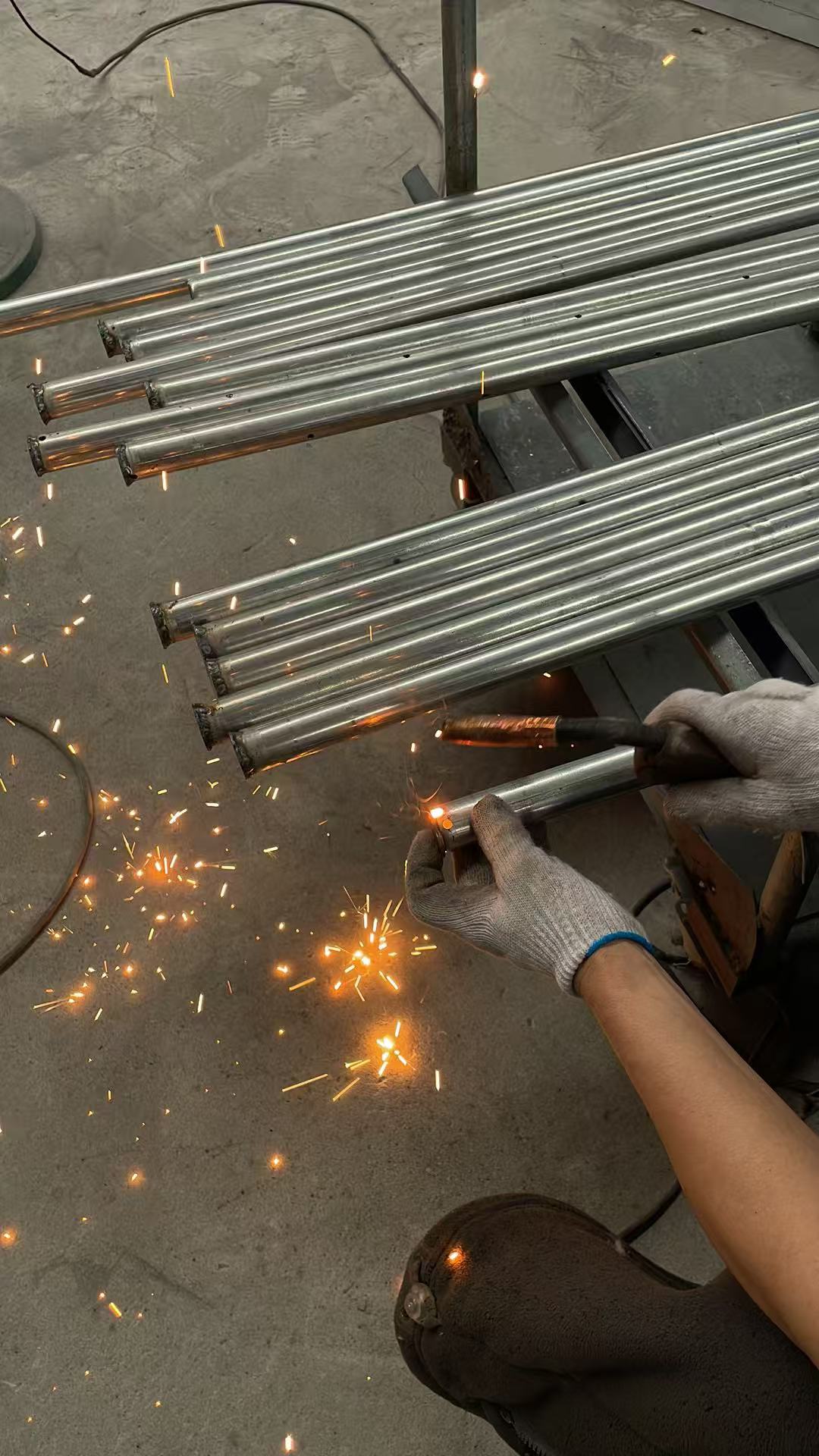

Pulse-Jet Blow Pipe Welding
Pulse-jet blow pipes are fabricated to distribute compressed-air cleaning pulses to the filter elements.

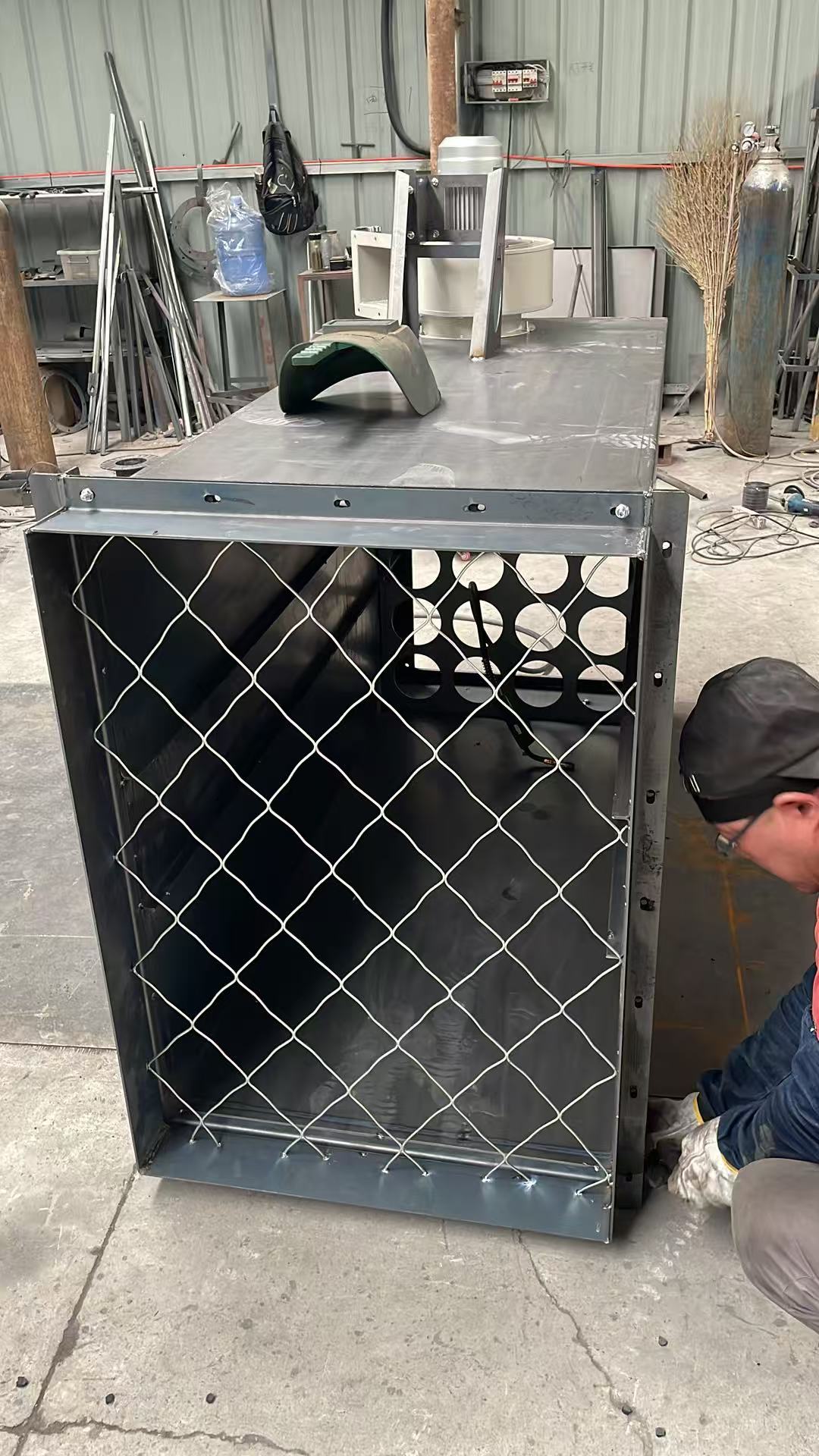

Dust Collector Housing Fabrication
The housing is assembled before filter components, pulse-cleaning equipment and electrical parts are installed.

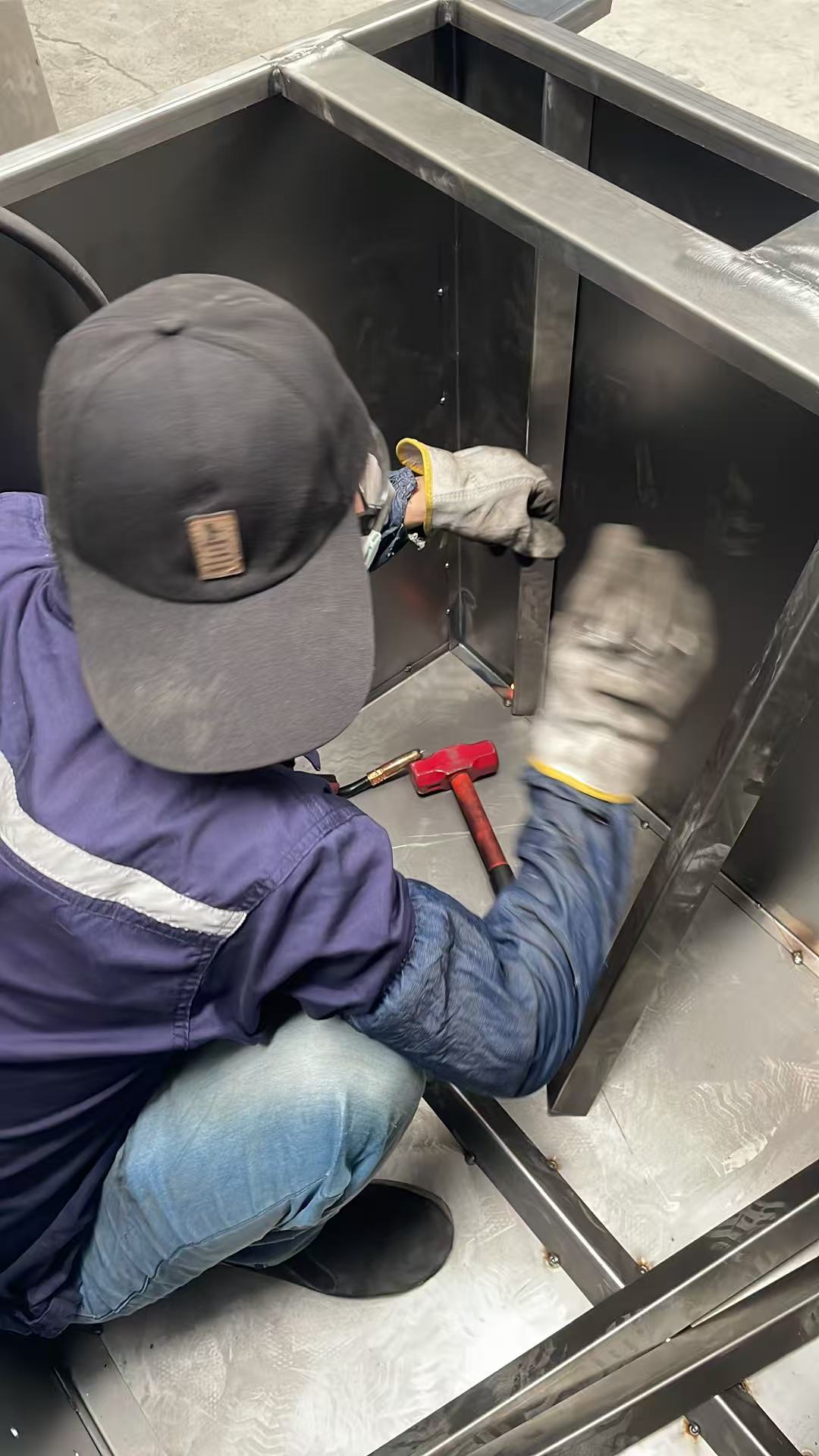

Housing Interior Fabrication
Internal supports and structural members are fitted and checked during housing assembly.
Need a Custom Silo Dust Collector?
Send the silo drawing, airflow, material, filter area, flange size and electrical requirements for model selection and fabrication review.
